In addition to new products we always have a variety of used instruments available. The images above don't necessarily reflect current inventory; call us to find out what's here now.

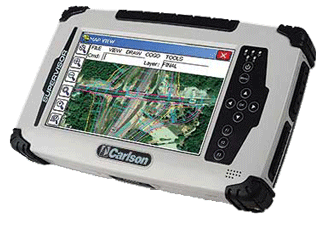

Carlson Supervisor Tablet (Algiz7)
  • Powerful 1.6GHz Intel Atom Processor
  • 7-inch wide, daylight-readable touchscreen
  • A 5-megapixel camera
  • Hot swappable batteries
  • 4GB of DDR3 RAM
  • 128 GB SSD
  • Rugged IP65 rating
  • Gobi 3000 WWAN cellular modem
  • 802.11 Wireless Connectivity & Bluetooth
  • Built-in 2-megapixel camera with LED light
  • Supports most GNSS receivers
  • Full Windows 7® Ultimate functionality
  • Fully integrated 3G antenna and modem for high-speed GSM/UMTS/EVDO data transmission

* Call us @ 866-USSURVEY for best pricing!

** Not all configurations are necessarily in stock; please allow up to two weeks for delivery and as always, if you have questions we welcome your call or email.

System


Processor N2600 1.6 GHz Dual-Core Intel ATOM
BIOS AMI System BIOS
Chipset Intel US15W
Memory 1 x SODIMM, Max 4GB DDR3 400/533
LAN Controller Realtek RTL811B Chipset, 10/100/1000 Mbps
Storage PATA interface support Mini-PCIe interface SSD (Default 128GB)
Audio Audio out for headset, Micro-in for microphone jack, 1.5W Speaker (internal)

I/O Connectors

Left I/O Port 1x Micro-In, 1x Audio Out, 1x Giga LAN, 1x USB, 1x DC Power Jack
Right I/O Port 1x RS232, 1x USB (IP67 Sealed)

In Front Control

Control Button 1x Power On/Off, 1x Menu, 1x Up, 1x Down, 1x Left, 1x Right, 3x Programmable Hotkeys
LED Indicator 1x Power Status, 1x HDD Status, 2x Battery Status, 1x Wireless Status

Display Specifications

Size 7″ (16:9)
Resolution 1024×600
Brightness 600 nit Maxview Technology
Touch 4 Wire Resistive Touch

Power Management

Power Input 12 V DC @ 4.16A
Power Consumption 6-9W
Battery Li-Polymer 7.4V 2S1P, 2600mAh
Adapter 100-240V, 50-60Hz, 12VDC
